Diagnostic Ultrasound System

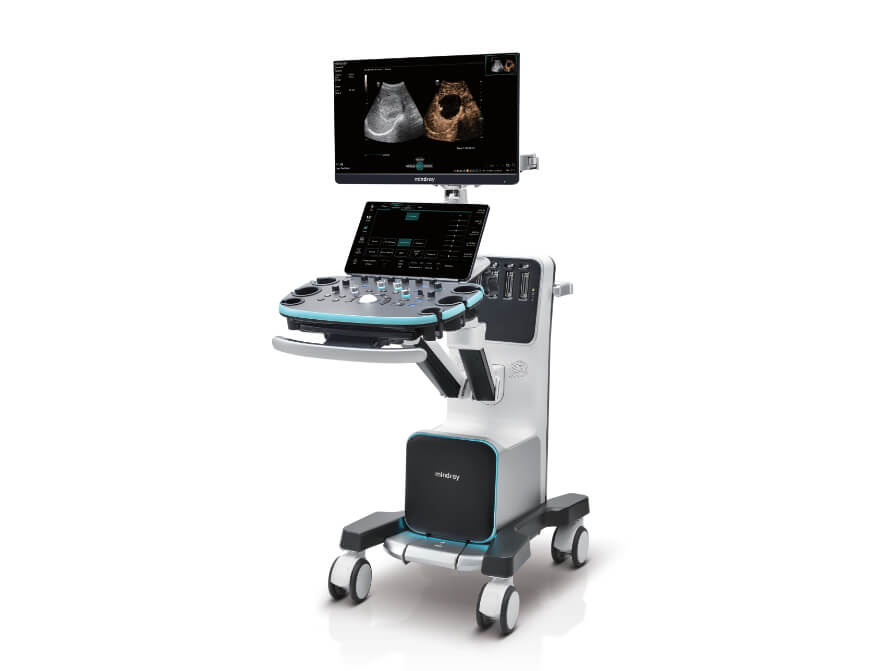

Resona I9

Innovation, in Every Facet

The Resona I9, a general imaging ultrasound system with completely innovative features from inside out. All innovations are developed based on in-depth insights into complex clinical scenarios, providing accurate and timely answers as well as outstanding efficiency and a remarkable user experience.

Unlimited Scanning Flexibility Beyond Imagination

iConsole - Intelligent Control Panel

• Intelligent and clinical exam-specific control panel layout with special E-ink keys
• Breakthrough design with adaptive layout for different clinical scenarios

Full-space Floating Control Panel

Can be adjusted for better space utilization, Easily meet various scanning needs

Stand scanning

Crouch scanning

Stretch scanning

Cross-bed Scanning

Thoughtful Design for Ultimate Convenience

23.8" bezel-less full-screen with large images for immersive experience

Eye-protecting monitor with adaptive brightness adjustment

15.6" full-HD touch screen with intuitive interaction

Short-cut switch of latest used probes and exams

Elevated sockets for changing probes without bending

26dB super-silent design as quiet as a bedroom

Bring Optimal Patient Care Immediately

Just Fold Down and Go

Minimum 1 meter height
Easy transportation by MPV (Multi-Purpose Vehicle) for mobile service

Bedside Exams Without Power Cables

• Up to 4 hours continuous scanning
• Auto indication of residual power when you grasp the right handle

Up to 4 hours continuous scanning

Auto indication of residual power when you grasp the right handle

Infinite Imaging Solutions Powered by ZST ⁺

The ZST ⁺platform is an extraordinary innovation, representing an ultrasound evolution. Transforming ultrasound metrics from conventional beam-forming to channel data based processing. It overcomes the traditional trade-off limitation among spatial resolution, temporal resolution and tissue uniformity, delivering exceptional image quality for infinite imaging solutions with non-stop improvements.

Resona I9 provides comprehensive clinical solutions for dedicated applications. Based on in-depth insights into different clinical scenarios, it delivers innovations that give users extreme clarity, outstanding intelligence and enhanced diagnostic confidence.

Advanced Diagnosis with Innovations

Increased Diagnostic Confidence with Automatic Tools

Precise Analysis and Measurements

A Novel Approach of Vascular Hemodynamics: V Flow

The color coded vector arrows indicate the velocity magnitude and direction of blood cells. With an ultra-high frame rate, V Flow provides extremely vivid, accurate and angle-independent visualization of complex vascular hemodynamic profiles with comprehensive data information.

V Flow

Innovative Stiffness Assessment: HiFR STE

Up to 10 times faster frame rate with smooth STE imaging display

More sensitive motion detection for better stability and greater accuracy

HiFR STE of breast cancer

HiFR STE of liver

Focal Lesion Diagnosis with Perfusion: UWN⁺ Contrast Imaging

Utilization of both the 2^nd harmonic and non-linear fundamental signals

Greater sensitivity for minor signals and longer agent duration with lower MI

CEUS of metastatic liver cancer

CEUS perfusion of thyroid adenoma

A Novel Approach of Vascular Hemodynamics: V Flow

V Flow

Innovative Stiffness Assessment: HiFR STE

Up to 10 times faster frame rate with smooth STE imaging display

More sensitive motion detection for better stability and greater accuracy

HiFR STE of breast cancer

HiFR STE of liver

Easy and fast evaluation of liver steatosis: Smart HRI

Auto organ recognition and brightness ratio calculation of liver and renal cortex

More reliable and accurate data than traditional qualitative estimation

Smart HRI

Smart and Accurate Breast Lesion Diagnosis: Smart Breast

Smart Breast increases the accuracy and productivity of routine breast scanning. The smart BI-RADS analysis enables fully automatic lesion detection, measurement, annotation, analysis and reporting. The lesion-oriented scanning protocol effectively improves quality control. Additionally, the systematic multi-lesion management and multi-planes assessment further provide more diagnostic information and greater accuracy.

Breast invasive ductal carcinoma

Smart and Standardized Thyroid Nodule Assessment: Smart Thyroid

The multi-planes based TI-RADS analysis enables more comprehensive and accurate thyroid nodule classification. Meanwhile the streamlined automated workflow provides more effective thyroid scanning.

Papillary thyroid carcinoma

Easy and fast evaluation of liver steatosis: Smart HRI

Auto organ recognition and brightness ratio calculation of liver and renal cortex

More reliable and accurate data than traditional qualitative estimation

Smart HRI

Smart and Accurate Breast Lesion Diagnosis: Smart Breast

Breast invasive ductal carcinoma

Angle-independent Myocardial Movement Evaluation -- TT QA

TT QA tracks the myocardial motion by the detection of 2D speckle patterns, and provides angle–independent and precise evaluation of myocardial movement.

TT QA

Precise Hardness Analysis of Vessel Wall -- R-VQS

R-VQS provides precise analysis with vessel hardness coefficient & pulse wave velocity. It helps for early diagnosis and prevention of artery atherosclerosis.

R-VQS

Angle-independent Myocardial Movement Evaluation -- TT QA

TT QA tracks the myocardial motion by the detection of 2D speckle patterns, and provides angle–independent and precise evaluation of myocardial movement.

TT QA

Precise Hardness Analysis of Vessel Wall -- R-VQS

R-VQS provides precise analysis with vessel hardness coefficient & pulse wave velocity. It helps for early diagnosis and prevention of artery atherosclerosis.
